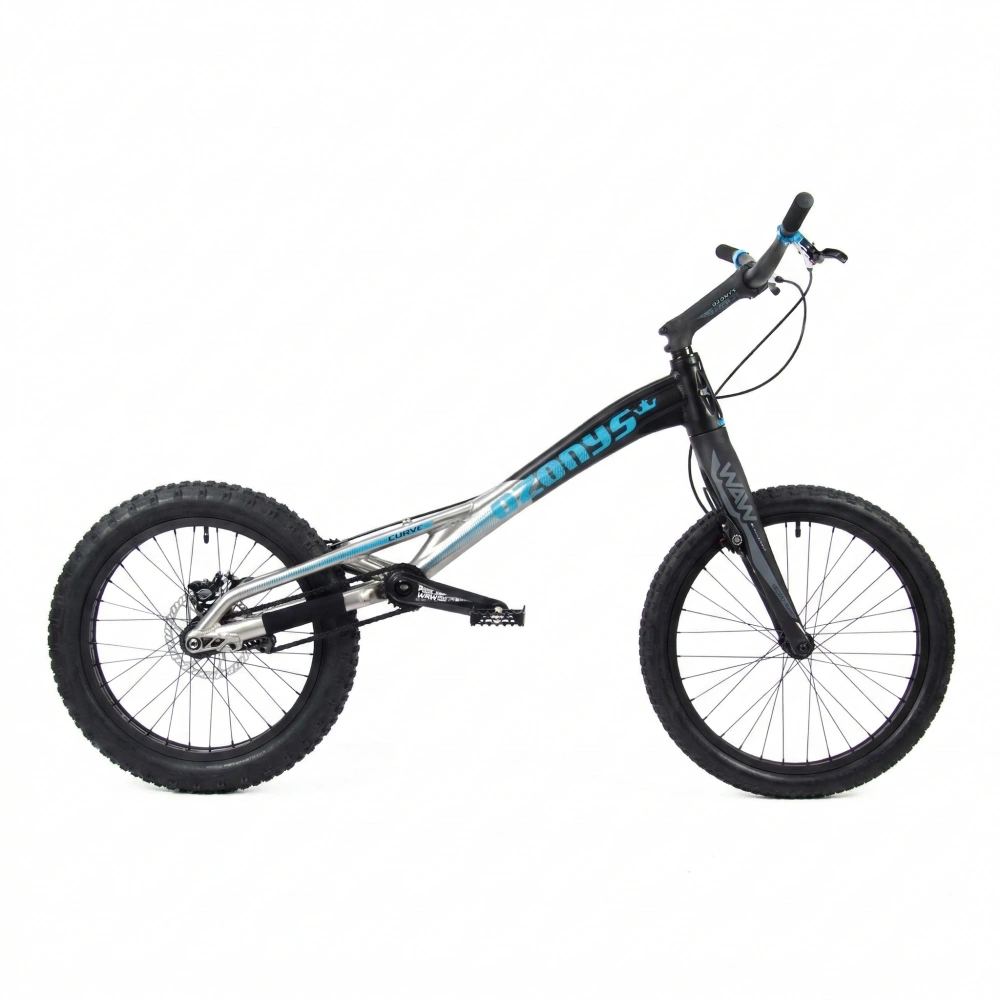

Ozonys Curve Pro 20″ 2026 1005 mm | DISC/DISC | HS/DISC

The Ozonys Curve Pro 2026 is a modern trials bike with a strong identity, developed specifically for the sport of Trials. Both beginners and seasoned riders will be won over by its style and the pure riding pleasure provided by its versatile, high-performance geometry.

The frame is crafted from hydroformed aluminum. Choosing this technology—with its elastic properties and variations in shape and material thickness—delivers a feeling of flexibility and responsiveness specific to trials riding. The Curve’s aesthetic, defined by its unique shapes, is also a true "emotion generator."

A critical component in the trials world, the Curve benefits from Hope Tech4 / Carthy Signature hydraulic brakes. These two solutions ensure optimum braking power; the differences lie in the feel, modulation, bite point, and lever kinematics. To each their own style, to each their own brake. Furthermore, all components are selected for their maximum efficiency in the sport.

What’s new for the 2026 Curve:

• Revised Hydroformed Tubing: Removal of the pressed crown and updated wall thickness to increase reliability and dynamism.

• AS30 Standard Crankset: The industry reference in trials.

• WAW Ultimate Components: Paired with Hope brakes and WAW Hashtagg Edition wheels.

• Thru-axles.

• WAW Carbon chain tensioner.

Frame Geometry

In trials, these specific measurements define the bike's "pop" and balance point on the rear wheel.

1. Wheelbase: 1005 mm – The total distance between the front and rear axles.

2. Chainstay Length: 350 mm – Distance from the bottom bracket (BB) to the rear axle. A shorter stay makes it easier to pull the bike into a manual or "backwheel."

3. BB Rise (BB High): +83 mm – How far the bottom bracket is positioned above the axle line. A high BB is essential for obstacle clearance in modern trials.

4. Head Angle: 71.5° – The angle of the head tube relative to the ground.

5. RS (Effective Reach): 604 mm – The diagonal distance between the BB and the top of the head tube.

6. Reach: 476 mm – The horizontal distance from the BB center to the head tube center.

7. Stack: 372 mm – The vertical distance from the BB center to the head tube center.

Technical Specifications
