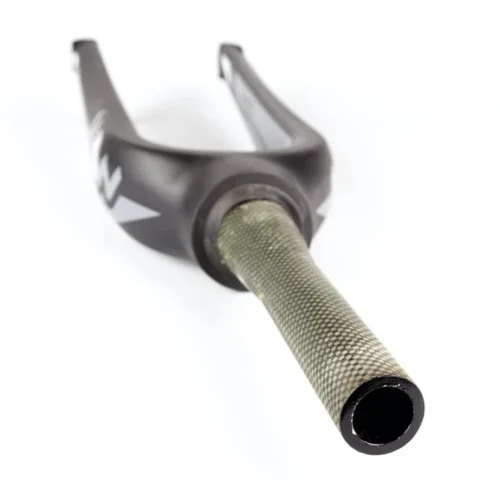

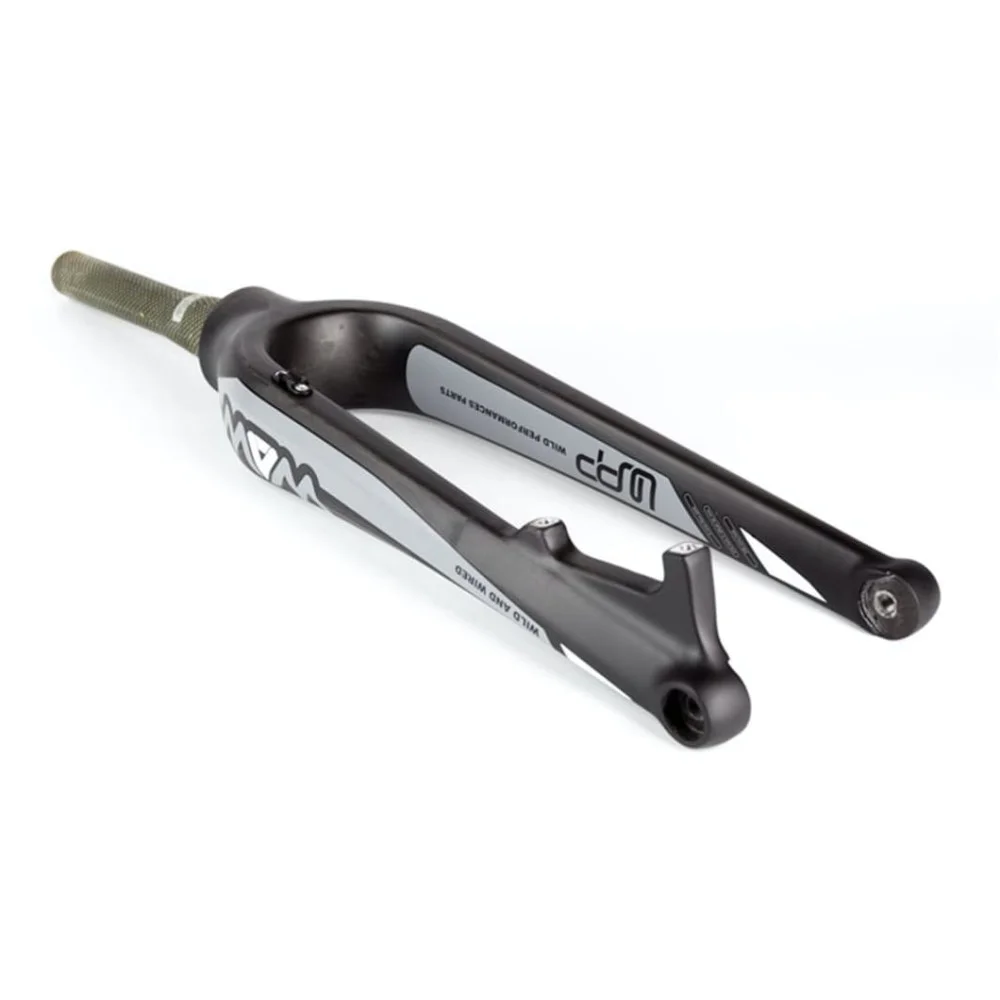

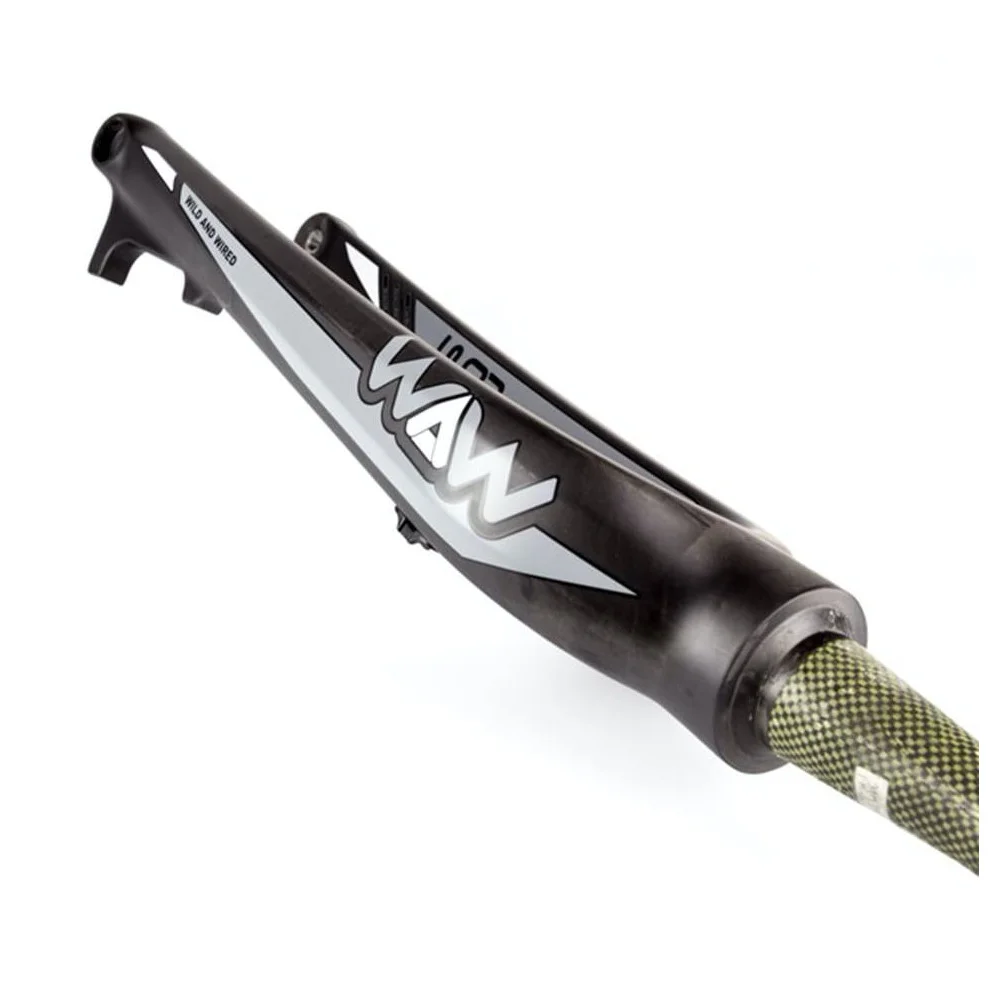

Carbon fork 20" WAW ULTIMATE | thru axle

CKFORKWAWCARB20DTA

Carbon trials fork from WAW! Made for hydraulic disc brakes and also hydraulic rim brakes (with 4-bolts IDM). Unique construction designed from UD carbon layers. Very popular model of carbon fork with 9mm thru axle which you can find on JEALOUSY, or JEALOUSY ULTIMATE bikes. Fork was tested CREWKERZ team riders like Raphael Pils and Charlie Rolls!

Brake
9,339 CZK
Quantity
In Stock

  • Expedition in 24 hours. Expedition in 24 hours.
  • Return of unused goods within 14 days. Return of unused goods within 14 days.

Carbon trials fork model WAW ULTIMATE made for hydraulic disc brakes and also hydraulic rim brakes (4-bolts - IDM). Unique construction designed from UD carbon layers. Very popular model of carbon fork with 9mm thru axle which you can find on JEALOUSY, or JEALOUSY ULTIMATE bikes. Fork was tested CREWKERZ team riders like Raphael Pils and Charlie Rolls!

  • UD outside carbon layer (very unique outside finis where your cannot see the carbon squares)

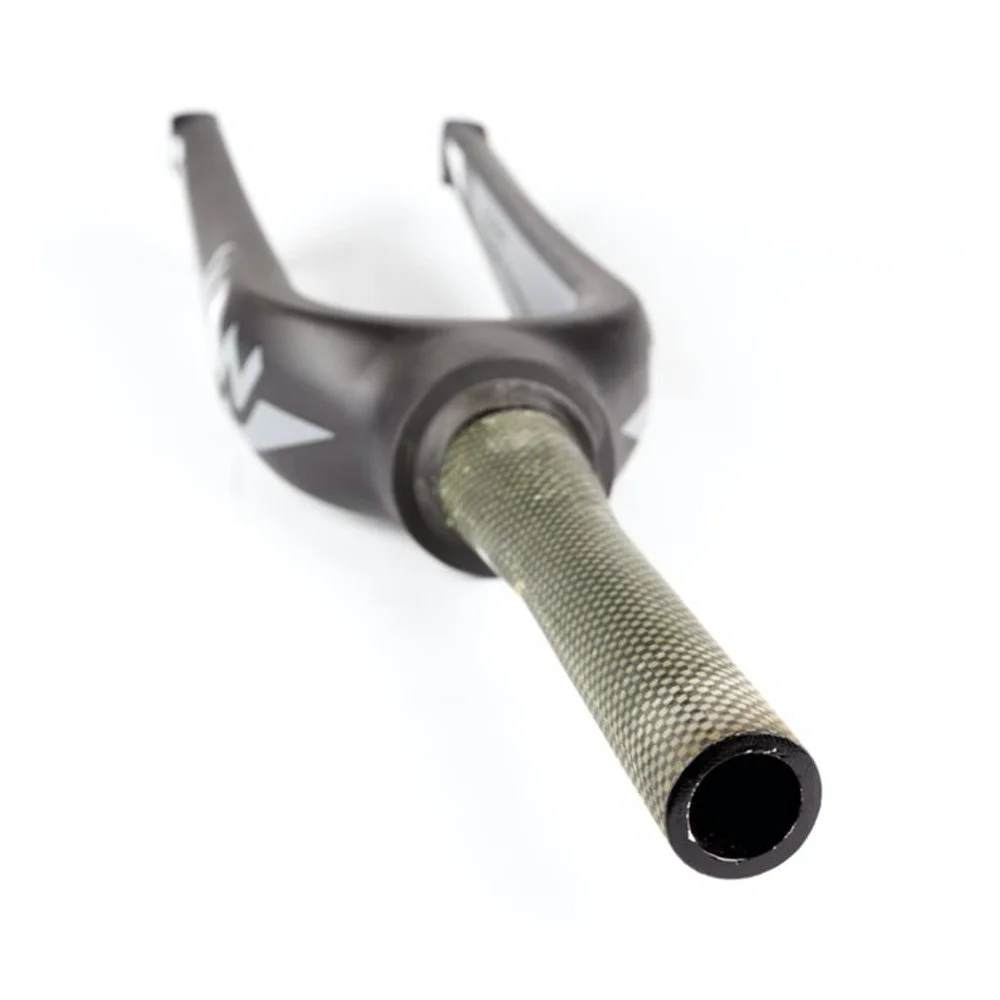

  • made with tapered 1-1/8" - 1,5" steerer tube and tapered headset
  • integrated "bottom cup" with 45° angle (is not necessary to use special crown race ring on the fork)
  • aluminium inserts inside the fork for disc brake / rim brake
  • PM disc brake mount or 4-bolts IDM hydraulic rim barke mount

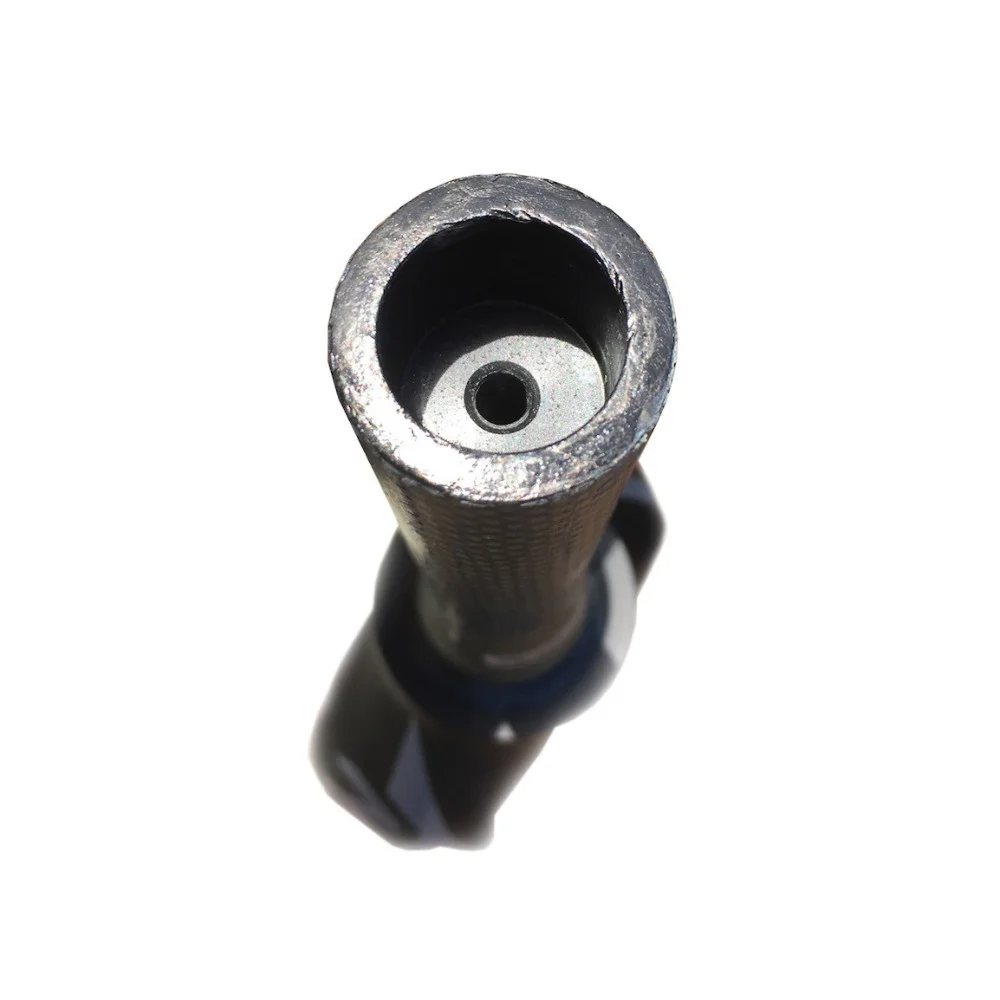

  • aluminium insetr with 120mm lenght in the steerer tube
  • threaded section starts 20mm before the end of the steerer tube

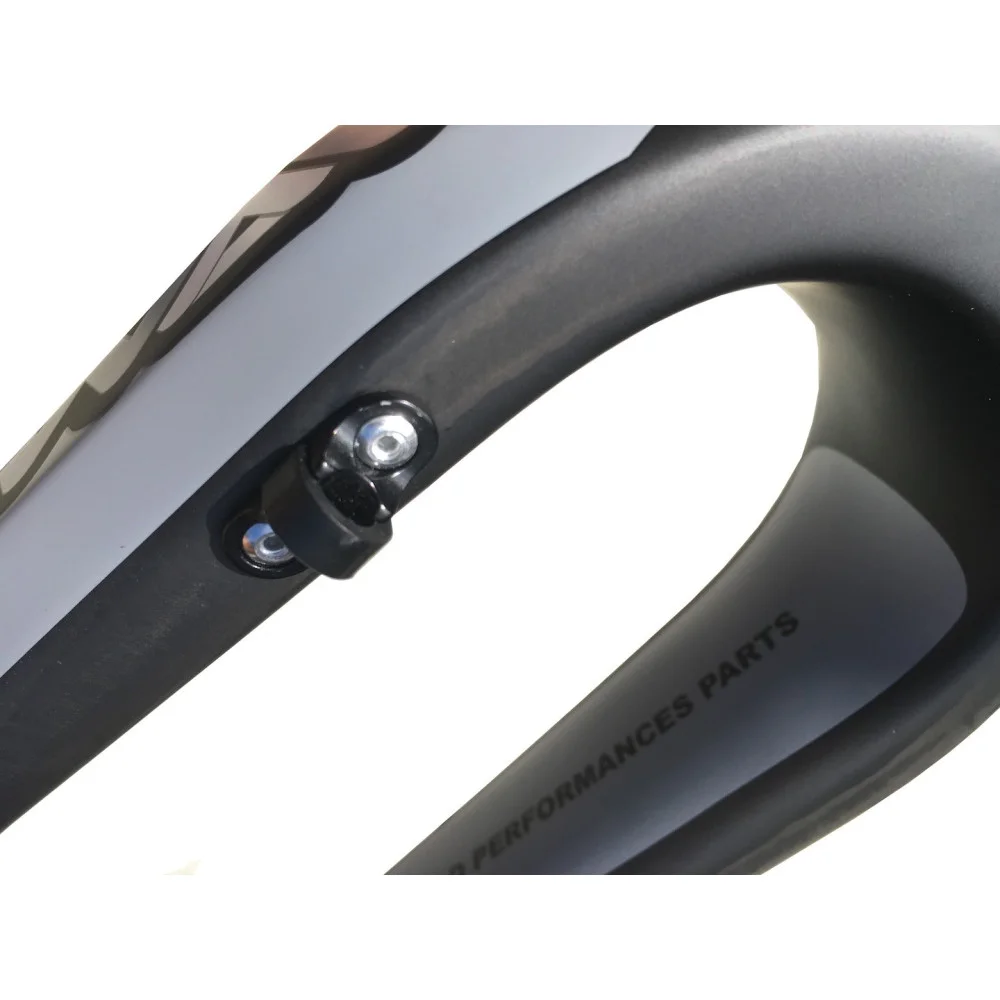

  • you can sepparate very easily the brake hose

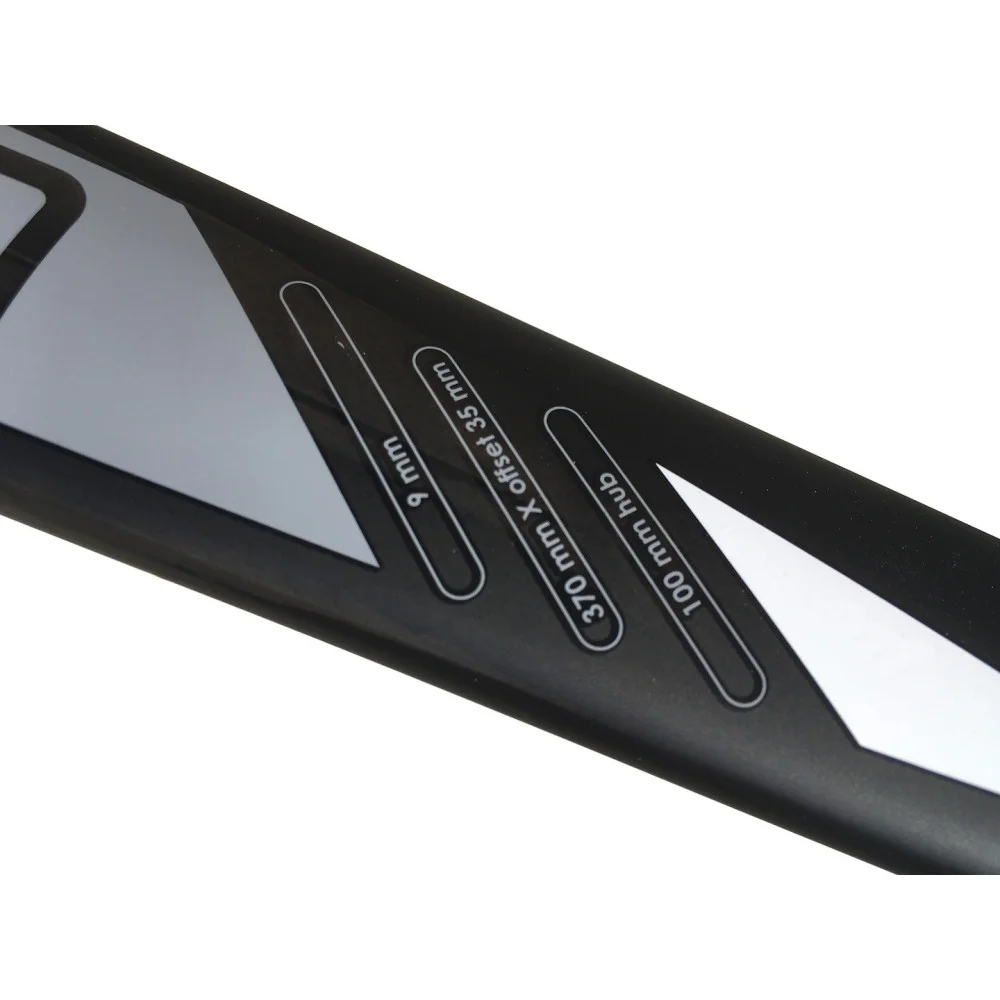

Parameters:

  • made for thru axle = 9mm
  • leg pitch = 100mm
  • axle offset = 35mm
  • axle to crown length = 370mm
  • steerer tube lenght = 190mm (without shortening)
  • weight: 497g (for hydraulic rim brake 4-bolts - IDM) / 510g  (for disc brake post mount)
CKFORKWAWCARB20DTA
WAW
2 Items

Data sheet

Brake mounts
DISC PM
Steerer tube
1 1/8" - 1.5" (28,6 - 38,1mm)
Material
Carbon
